PROJECT 2 STAGE 02 - PROTOTYPING & FINISHING

-

 Logo

Werewolf Hunter

Prototype 1

For the first prototype, the crossbow is designed in an aerodynamic shape that can reduce air resistance. Hence, arrows can travel at high speed to harm werewolves effectively. Besides that, the crossbow is made up of wood and the arrowhead is made up of flint which avoids corrode. These two materials can be found easily everywhere.


Prototype 2


For the second prototype, the crossbow is made up of hard metals. Next, the crossbow is designed for the presence of stock. Crossbow stock provides structural support to improve stability. Additionally, Crossbow is designed with silencers that reduce the sound of crossbows. Silencers help us not be detected by werewolves.


Prototype 3


For the third prototype, the crossbow has a telescopic sight with variable power features for magnification to shoot werewolves at long distances. Next, the crossbow has a trigger which is responsible to allow rapid shooting to assault target which is werewolves.


Prototype 4

For the fourth prototype, fletching on an arrow shaft can steer and stabilise the arrow during flight. Additionally, the quiver that is made of light plastic to reduce the influence of the stability of the crossbow is a container for storing more arrows. Next, the arrowhead is made up of silver.


Prototype 5

For the fifth prototype, the crossbow is designed with a power button which can trigger the mechanism of a camera flash with a siren. Big flash and alarm sound is harmful to werewolves because of enhanced senses.

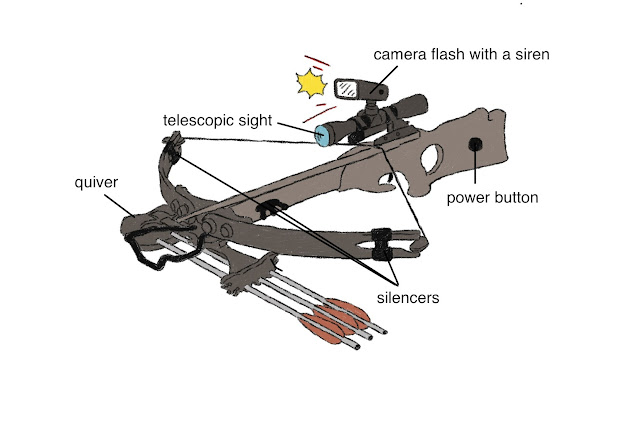

Final Product

For the final product, this crossbow is a combination of all prototypes. Crossbows are in aerodynamic shape and made up of hard metal. Next, the presence of stock and trigger enhance the crossbow's stability and accuracy. Additionally, telescopic sight and silencers allow the shooting of werewolves effectively. Arrow have a plastic quiver to store more in it. Lastly, camera flash with a siren and silver arrowhead are the features that are specific to werewolves because werewolves are weak to silver, high-pitch sounds and big flashes.
